Paint booths are controlled environments for paint awarding, designed to contain hazardous vapors and provide a safer, healthier environment for painters.
Understanding the components of paint booth design and what purpose they serve is fundamental to maximizing your spray booth's performance. Here is a await at the virtually mutual components of paint berth design:
Paint Booth Walls

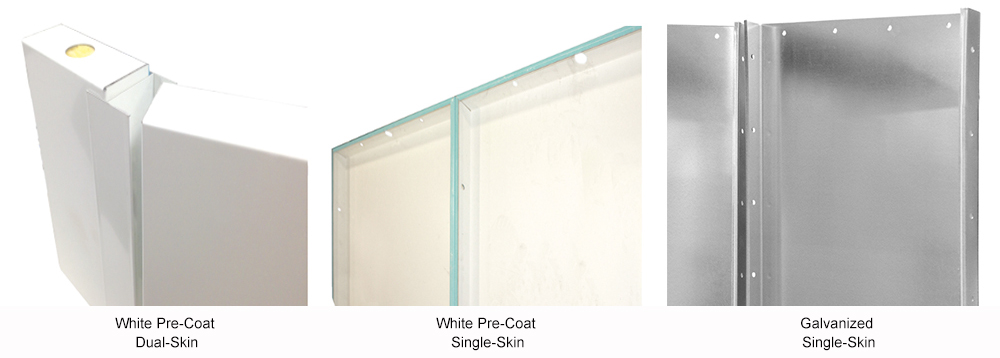

The walls of paint booths are either single-peel or dual-skin. Both have advantages in terms of quality and cost.
Single-skin panels are strong and rigid, offering toll savings without compromising quality. Cleaning the interior walls of a unmarried-skin spray booth is easy, every bit the exterior flanges offer a shine interior surface.
Dual-skin panels provide a smooth fit and finish for a stronger, longer-lasting pigment berth. They are insulated to decrease dissonance and ambient rut exterior of the spray booth while keeping heated air inside the cabin.
White pre-coated walls are typically standard with dual-skin booths and may exist an option on single-skin booths. White walls increase the reflectability of the lights, making information technology easy to run into what you lot are painting.
Pigment Booth Doors
A frequently overlooked component of pigment booth design is the spray booth doors. They are essential to the performance of the spray booth and the quality of the finish.
Production doors allow vehicles, parts and products to enter the paint booth for spraying. The type of production door included on a paint berth is determined by whether or not the booth will be pressurized.
Discussions on paint booth pressure level eye around whether the spray booth is nether negative or positive pressure relative to the exterior environment. With positive pressure, dirt and droppings cannot enter the working chamber and soil the object being painted. Meanwhile, negative force per unit area prevents emissions and volatile organic compounds (VOCs) from entering the room next to the working chamber.

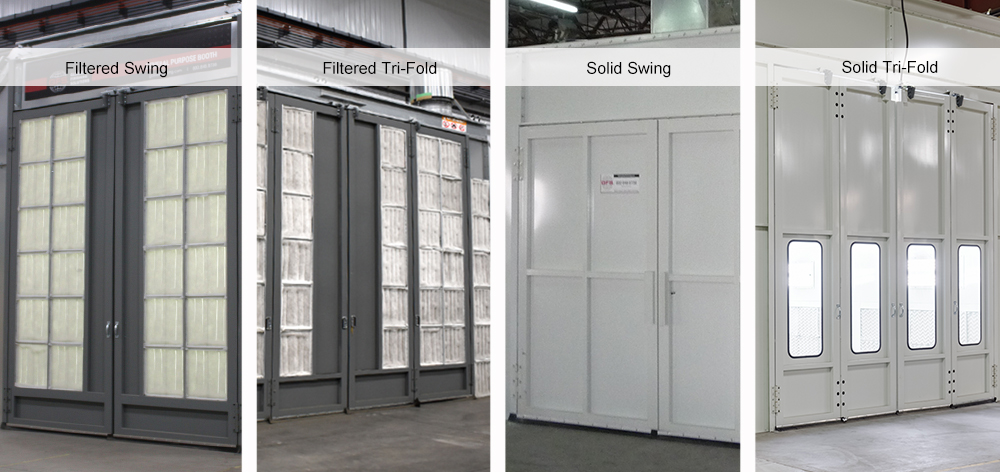

Non-pressurized pigment booths feature filtered product doors. The set of intake filters prevent contaminants from entering the paint booth. Solid doors are used on pressurized pigment booths, as air enters the booth through a filtered intake plenum.

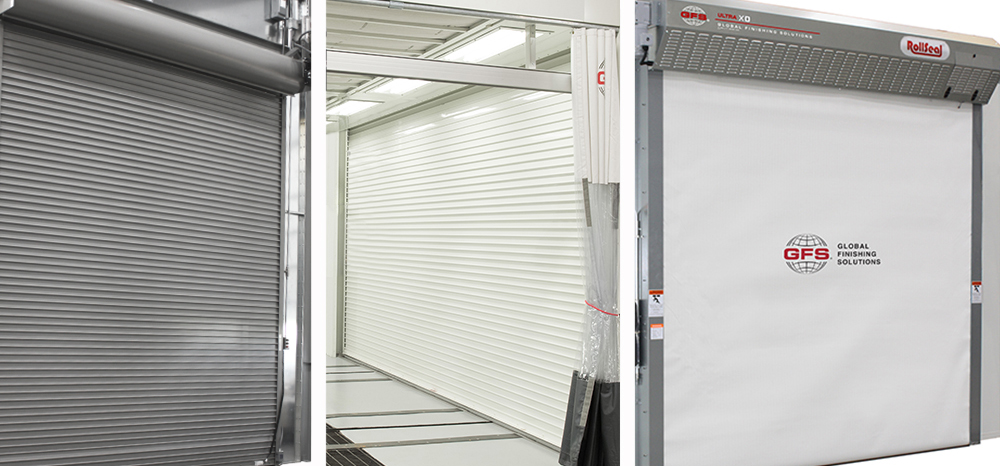

Available in galvanized steel, aluminum and fabric, roll-upward doors are some other solution for enclosing pressurized paint booths.
RollSeal Doors from Global Finishing Solutions (GFS) control contamination and airflow between bays. These doors are most useful when at that place are space restrictions or when included in a Side-Load Finishing Arrangement. They use a triple-layered material and airtight seal to prevent overspray from escaping the paint booth. Air between layers of the fabric helps maintain desired heat levels inside the spray booth to encounter cure temperature requirements.
Personnel doors give painters quick and piece of cake access to the booth. The door can be located on either side of the paint booth. Ascertainment windows may also exist an option on personnel doors.
Intake Plenum
Located at the front or top of a pressurized paint booth, an intake plenum is a machinery through which air is introduced into the booth. Air entering the spray booth through the intake plenum may flow parallel to the flooring or downwards from an overhead plenum at the top of the chamber. The intake plenum is designed with high-efficiency paint booth filters to remove dust and dirt earlier information technology enters the spray booth.
The intake plenum may exist vertical, located at one terminate of the paint booth. Or it may be horizontal, using part or all of the ceiling inside the paint berth every bit an aperture. In crossdraft spray booths, the intake plenum is located at the front of the enclosure. In downdraft, semi-downdraft and side downdraft spray booths, the intake plenum is located in the ceiling.
Exhaust Bedroom, Pit & Plenum
An frazzle plenum is a machinery through which air is exhausted from a paint booth. The exhaust bedchamber includes a filter organization that captures particles before they enter the atmosphere. An exhaust fan draws air out of the working chamber in the paint booth and pulls information technology through the exhaust filters and frazzle sleeping room. Air then passes through exhaust ducting to the outside.

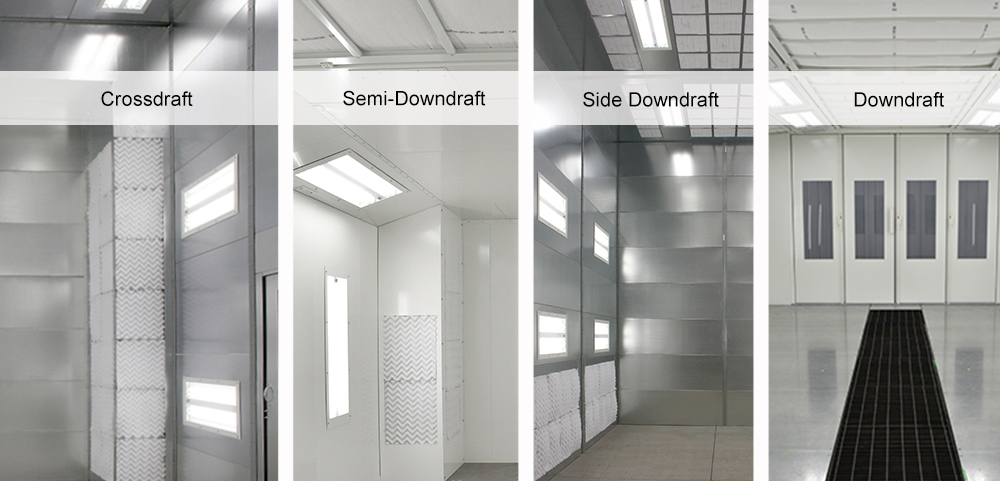

In crossdraft and semi-downdraft paint booths, the exhaust plenum is located at the rear of the spray booth. In side downdraft pigment booths, filtered frazzle plenums are located on both sides of the spray booth.
When air reaches the floor in downdraft paint booths, it is exhausted through a filtered exhaust pit. The pit may consist of 1, 2 or iii rows. Information technology is considered ductwork and must be designed based on the airflow requirements of the pigment booth. The exhaust plenum is located at the rear of the berth or on each side of a downdraft spray booth.
The primary purpose of exhaust filtration is to protect a paint booth's fans, stack and plenum from overspray contamination, without slowing airflow. Exhaust filters must concur enough paint to avoid constantly replacing the paint berth filters. They are located in the plenum at the dorsum of the spray berth, in the pit or in the side downdraft frazzle chambers.

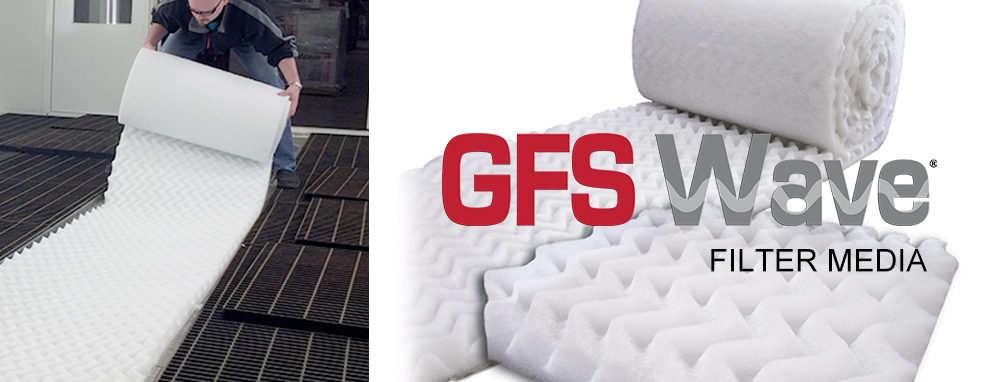

Included with all GFS paint booths, GFS Moving ridge exhaust filters take a belongings capacity of 4.4 pounds. Paint-laden air is captured beyond the surface and within the depth of the media. This extends filter service life and reduces operating costs. GFS Moving ridge exhaust paint berth filters are useful for a variety of paints and a wide assortment of spray applications, from clear coats to loftier solids.
Air Make-Up Unit (AMU)

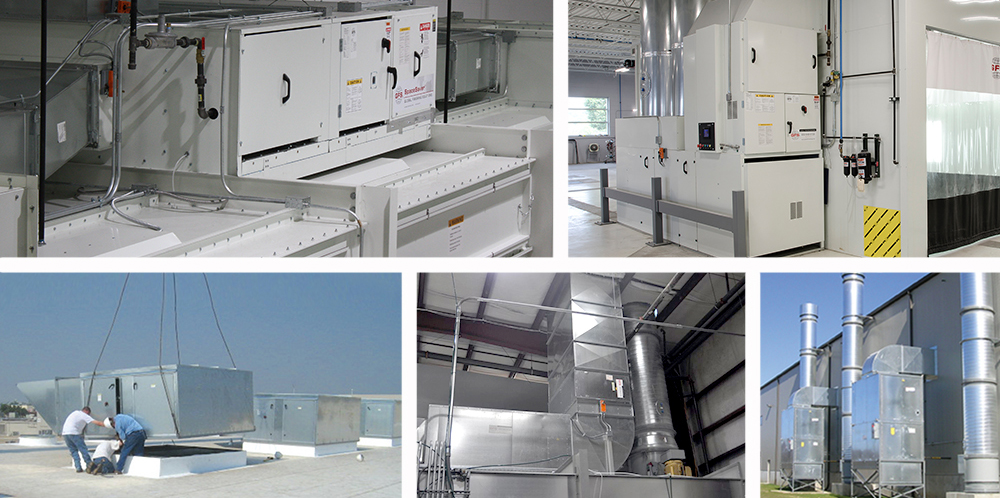

Air that is exhausted from a paint booth must be replaced. If replacement air is not pulled directly from a building, it tin can be pulled from the outside and filtered through an air brand-up unit.
An air make-up unit allows for temperature control in a paint berth during coating awarding and curing. AMUs maintain a constant, leaving-air temperature regardless of the incoming, outdoor air temperature. They furnish equal amounts of fresh air for every cubic human foot of air exhausted.
With an AMU, conditioned, filtered air is supplied to the paint berth. There is no demand to draw air from the facility, which improves working conditions and lowers operating costs.
Paint Booth Manometers

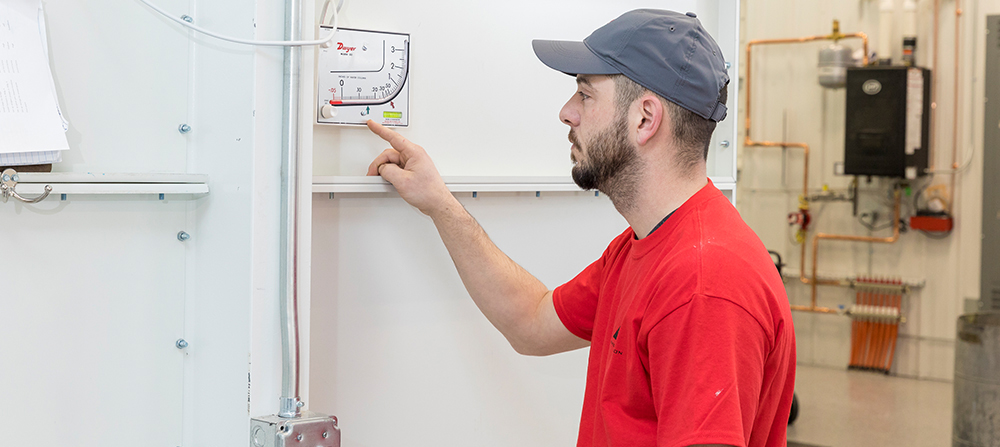

There are several styles of differential pressure gauges available to measure exhaust filter loading. Also known every bit a typhoon guess, a manometer is included in all GFS industrial spray booths.
A manometer is the most unremarkably used "dirty filter" indicator. Information technology indicates when paint filters are loaded and need replacement. Replacing intake and frazzle filters regularly is one of the simplest things for the cleanliness and efficiency of your pigment booth.
Clogged or overloaded filters hinder proper airflow through the paint booth. This can crusade dust to enter the paint booth and overspray to recirculate, adversely affecting the quality of your paint job.
Some applications and processes may require monitoring devices to be upgraded to a photohelic or magnehelic gauge. The GFS Parts & Filters department tin determine what type of monitoring is needed for your spray booth.
The better y'all understand the components of paint booth design, the more equipped you lot volition be to maximize its efficiency. GFS has an experienced team of technical experts prepare to assist yous throughout the lifespan of your equipment.
